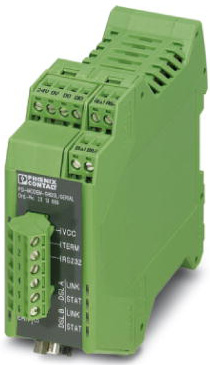

Extensor PSI-MÓDEM-SHDSL/SERIE a cobre
RS232/422/485 por cableado de cobre
- Transmisión de datos de serie a un máximo de 20 km
- Dos puertos SHDSL para la transmisión simétrica de datos
- Compatibilidad con las interfaces RS232, RS422 y RS485
- Transparencia de protocolos
El extensor PSI-MÓDEM-SHDSL/SERIE a cobre amplía de forma transparente la transmisión de datos de serie a un máximo de 20 km a través de un cableado de un par trenzado (CAT5/6/7), coaxial o cualquiera de cobre existente anteriormente utilizado en circuitos de alarmas, circuitos E1/T1, CCTV y aplicaciones de CATV.
Transmisión de Datos de Serie a larga distancia sobre Cobre
SHDSL es la tecnología más adecuada para la transmisión de datos digitales a través de cables de cobre de larga distancia de una red. Aunque el rendimiento depende de las características del cable utilizado, el alcance de SHDSL es mucho mayor que cualquier otra tecnología DSL actualmente disponible. Además, el ancho de banda de subida y bajada es simétrico, lo que aumenta la tasa de datos hasta un máximo de 15,3 Mbps en cableado de cobre de 2 hilos y 30 Mbps en cableado de cobre de 4 hilos.
El Extensor PSI-MÓDEM-SHDSL/SERIE a cobre ofrece transparencia de protocolos y es compatible con las interfaces RS-232, RS-422 y RS-485. Los dos puertos SHDSL permiten configurar fácilmente redes punto a punto, redundantes punto a punto, lineales y de topología en estrella.
Hay disponibles dos salidas digitales de software configurables para la emisión de alarma de dispositivos externos.
Aunque estos dispositivos son «plug and play», si necesita una configuración adicional del dispositivo durante la instalación, se puede suministrar la alimentación a través de un cable USB de ordenador. El software de configuración fácil proporciona diagnósticos en línea, función de libro de registros, configuración de proyectos individuales y la posibilidad de guardar las configuraciones del proyecto. Además, a fin de agilizar el diagnóstico del dispositivo para los técnicos in situ, el PSI-MÓDEM-SHDSL/SERIE cuenta con funciones de diagnóstico integradas, un libro de registros e indicadores LED claramente visibles.
Hardware Specifications - PSI-MODEM-SHDSL/SERIAL Copper Extender
Serial interface
Interface 1
V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
Interface
RS-232
Connection method
D-SUB 9 plug
Transmission length
max. 15 m
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
13
Data flow control/protocols
Software handshake, Xon/Xoff, hardware handshake (RTS/CTS), 3964R-compatible, Modbus (RTU/ASCII), transparent protocol - additional protocols supported
Serial transmission speed
0.11/0.3/1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4 kbps, NRZ
Interface 2
SHDSL interface according to ITU-T G.991.2.bis
Connection method
2 x 2-pos. COMBICON plug-in screw terminal blocks
Transmission length
up to 20 km (Depending on data rate and cable cross section)
Serial transmission speed
- 4-wire operation: 64 kbps ... 30 Mbps
- 2-wire operation: 32 kbps ... 15.3 Mbps
Interface 3
USB 2.0
Connection method
Mini-USB type B, 5-pos.
Transmission length
< 5 m (only for configuration and diagnostics)
Interface 4
RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
Interface
RS-422
Connection method
Plug-in/screw connection via COMBICON
File format/coding
Serial asynchronous UART/NRZ, 7/8 data bits, 1/2 stop bits, 1 parity bit (even, odd, mark, space, none), 9/10/11-bit character length
Transmission length
≤ 1200 m
Termination resistor
390 Ω - 180 Ω - 390 Ω (can be connected)
Data flow control/protocols
Automatic control // Modbus RTU/ASCII
Serial transmission speed
1.2/2.4/4.8/7.0/9.6/19.2/38.4/57.6/75/93.75/115.2/136/187.5/375/500/1500/2000 kbps, NRZ
Interface 5
RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
Interface
RS-485
Connection method
Plug-in/screw connection via COMBICON
File format/coding
Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length
Transmission length
up to 1200 m
Termination resistor
390 Ω - 180 Ω - 390 Ω (can be connected)
Protocols supported
Transparent, including 3964R protocol
Data flow control/protocols
Automatic control // Modbus RTU/ASCII
Serial transmission speed
1.2/2.4/4.8/7.0/9.6/19.2/38.4/57.6/75/93.75/115.2/136/187.5/375/500/1500/2000 kbps, NRZ
Digital outputs
Output name
Digital output
Number of outputs
2
Voltage output signal
depending on the operating voltage
Current output signal
≤ 150 mA (Short-circuit-proof)
Behavior of the outputs
Deactivated for device supply via DIN rail connector
Function
Management
User-friendly software: Guided configuration, plausibility checks, diagnostic functions, log book
Status and diagnostic indicators
LEDs: VCC (supply voltage), RD/TD (serial data traffic), ERR (errors), TERM (termination resistor active), RS-232 (RS-232 active)
2 x LINK / 2 x STAT (DSL data traffic port A and port B), DIAG (diagnostic messages)
Ambient conditions
Ambient temperature (operation)
-20°C ... 60°C (for derating, see technical documentation)
Ambient temperature (storage/transport)
-40°C ... 85°C
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
10 % ... 95 % (non-condensing)
Altitude
5000 m (For restrictions see manufacturer's declaration)
Degree of protection
IP20
Noise immunity
EN 61000-6-2
General
Electrical isolation
DIN EN 50178 (VCC, RS-232 // RS-422, RS-485 // DSL (A) // DSL (B) // FE)
Test voltage data interface/power supply
1.5 kVrms (50 Hz, 1 min.)
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Net weight
339.4 g
Housing material
PA 6.6-FR
Color
green
MTTF
- 693 Years (SN 29500 standard, temperature 25°C, operating cycle 21 % (5 days a week, 8 hours a day))
- 301 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25 % (5 days a week, 12 hours a day))
- 121 Years (SN 29500 standard, temperature 40°C, operating cycle 100 % (7 days a week, 24 hours a day))
Conformance
CE-compliant
Noise emission
EN 55011
MTBF
- 1004 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
- 199 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))
Power supply
Nominal supply voltage
- 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply)
- 5 V DC (configuration only, via mini-USB type B)
Supply voltage range
18 V DC ... 30 V DC
Typical current consumption
< 180 mA (24 V DC)
Connection method
COMBICON plug-in screw terminal block
Dimensions
Width
35 mm
Height
99 mm
Depth
114.5 mm
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
Reach and RoHS Compliant
Standards and Regulations
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Conformance
CE-compliant
ATEX
II 3 G Ex nA nC IIC T4 Gc X
UL, USA/Canada
cULus listed UL 508
Shock
15g in all directions in acc. with IEC 60068-2-27
Noise emission
EN 55011
Noise immunity
EN 61000-6-2
Vibration (operation)
In acc. with IEC 60068-2-6: 5g, 150 Hz
Approvals
- UL Listed
- cUL Listed
- EAC
- ATEX
- cULus Listed
Commercial data
Packing unit
1
Weight per piece
360.0 g
Country of origin
Germany
Application Diagrams
Interfaces
- RS-232, up to 230.4 kbps, automatic DCE/DTE switchover
- RS-422, up to 2000 kbps
- RS-485 W2, up to 2000 kbps, termination resistor can be connected
Long Distance Point-to-point connections between serial devices over copper
Long Distance Linear Topology Network
Long Distance Star Topology Network
Range
Figure 1: SHDSL data rate depending on the distance,2-wire
Calculation of SHDSL data rates using the PSI-SHDSL Calculator
Watch this tutorial you learn how to calculate the theoretical maximum data rate of an SHDSL line quick and easy with the software PSI-SHDSL Calculator. Overall, the software helps you to plan your project with more reliability.
