Device Servers Serie IOLAN SDG W
Serie a Ethernet en LAN Inalámbrica
- WLAN de alto rendimiento ( Wi-Fi ® ): Radio de doble banda compatible con IEEE 802.11 a,b,g,n
- Altas velocidades inalámbricas de hasta 150 Mbps
- Interfaces de puertos de serie RS232/422/485 de selección de 1, 2 o 4 software
- Gigabit Ethernet de alta velocidad ( 10/100/1000 Base-T )
- Funciones de seguridad avanzadas para el cifrado de datos, autenticación de usuarios y gestión de eventos
- Infraestructura inalámbrica y modos de conectividad P2P
Para una conectividad de serie a Ethernet de alta velocidad y segura en LAN inalámbricas, el Device Server IOLAN SDG W es el producto compacto más avanzado que se ofrece actualmente en el mercado. El IOLAN SDG W, pese a su tamaño compacto, consigue un elevado rendimiento, es compatible con una gran variedad de tecnologías de LAN inalámbricas de alto rendimiento, y ofrece seguridad avanzada, flexibilidad y la vanguardista tecnología IPv6, lo que hace que sea ideal para aquellas aplicaciones que requieren realizar de forma remota una gestión de consolas/dispositivos de serie, capturas de datos o control.
Razones por las que los modelos IOLAN SDG W son la opción preferida:
- Amplia compatibilidad con tecnologías LAN inalámbricas: IEEE 802.11 a,b,g,n @ 2.4 Ghz/5 Ghz
- Velocidades inalámbricas de hasta 150 Mbps
- Interfaz de alta velocidad Gigabit Ethernet 1000base-T y compatibilidad con 100base-TX y 10base-T
- Como proxy de clientes inalámbricos, permiten la conectividad inalámbrica a puntos de acceso centrales para dispositivos de serie y de Ethernet
- Puede ofrecer una conexión de serie directa a peer de serie en redes inalámbricas
- Punto de acceso de software ( SoftAP ) para hasta 6 clientes inalámbricos
- La capacidad de roaming inalámbrico rápido es ideal para aplicaciones móviles en las que el IOLAN puede estar en roaming de forma transparente entre puntos de acceso que comparten el mismo ESS (conjunto ampliado de servicios)
- Entradas de alimentación dobles redundantes (barril y bloque de terminales)
- Tecnología de paquetes TrueSerial® – las conexiones serie a través de Ethernet más auténticas; garantizan la integridad del protocolo serie
- Indicadores de interfaces de red y serie para facilitar la solución de problemas
- Utilidad de instalación Plug & Play que elimina los problemas de configuración de todos los IOLAN de su red IP
- TruePort – el redirector com/tty de Perle para aplicaciones basadas en el estándar serie funciona con Windows, Vista, Linux, Solaris, SCO y Unix
- Soporte IP de nueva generación (IPv6) para proteger su inversión y lograr la compatibilidad de red
- Compacto y con carcasa protectora rígida de acero para montaje en escritorio, pared o carril DIN
- Acceso de navegador sin código Java a puertos de consola serie remota a través de Telnet y SSH
Conectividad serie a Ethernet segura
Los Servidores de Dispositivos IOLAN SDG Wireless permiten a los administradores acceder de forma segura a puertos de consola serie remotos situados en equipos tales como centralitas, servidores, routers, equipos de almacenamiento de red y dispositivos de seguridad a través de una red IP. La información de administración de datos se protege mediante herramientas de cifrado estándar, como Secure Shell (SSH) y Secure Sockets Layer (SSL). El acceso de usuarios autorizados se garantiza mediante planes de autenticación, como RADIUS, TACACS+, LDAP, Kerberos, NIS y fichas SecurID de seguridad RSA.
Gracias al uso de tecnologías de cifrado, un IOLAN puede proteger datos sensibles y confidenciales de un dispositivo serie, como un lector de tarjetas de crédito, antes de su envío a través de una Intranet corporativa o de la Internet pública. Se ofrece soporte completo para los principales sistemas de cifrado, como AES, 3DES, RC4, RC2 y CAST128, con el fin de lograr la compatibilidad con dispositivos de cifrado pares.
El estándar IPSec, reconocido como el método más seguro de comunicación con redes privadas virtuales a través de Internet, ofrece una sólida autenticación y cifrado de paquetes de IP en la capa de red del modelo OSI. Como estándar, resulta idóneo para lograr la interoperatividad multifabricante dentro de una red, ya que ofrece flexibilidad y capacidad para encontrar la solución adecuada a cada aplicación.
Plug-ins de IOLAN
Puede tener la garantía de que, al utilizar uno de los servidores de dispositivos IOLAN con prácticamente cualquier dispositivo que tenga un puerto COM, dicho dispositivo funcionará con la aplicación deseada exactamente de la misma forma que cuando se encontraba conectado directamente. En el caso improbable de que el servidor de dispositivos Perle no permita establecer esta conexión, Perle hará que funcione.
Los servidores de dispositivos IOLAN de Perle utilizan "plug-ins de dispositivos" instalables por el cliente para lograr conectar dispositivos en red correctamente en los mismos casos en los que otras soluciones han fallado. Solicite una consulta de ingeniería gratuita.
Tecnología IP avanzada
Los servidores de dispositivos IOLAN serie a Ethernet son compatibles con el protocolo IP de nueva generación (IPv6), con lo que protege la inversión de las empresas y organizaciones gracias al cumplimiento de este estándar en rápido crecimiento.
La demanda de IPv6, que es compatible con esquemas de direccionamiento IPv4, se ve impulsada por la necesidad de disponer de más direcciones IP. Ante la implementación y el despliegue de redes móviles avanzadas, se necesita un método resistente que permita gestionar el inmenso influjo de nuevos dispositivos con capacidad de dirección IP en Internet. De hecho, el Departamento de Defensa de EE.UU. exige que todos los equipos adquiridos sean compatibles con IPv6. Asimismo, los principales sistemas operativos, como Windows, Linux, Unix y Solaris, además de los routers, cuentan con soporte incorporado para IPv6.
Por consiguiente, es importante que los usuarios finales e integradores seleccionen equipos de conexión a red que incorporen el estándar IPv6. La línea IOLAN, con soporte para IPv6 ya integrado, es la mejor opción en tecnología serie a Ethernet.
Conexiones serie a Ethernet flexibles y fiables
Un Device Server IOLAN SDG W es idóneo para conectar aplicaciones de puerto COM basadas en serie y aplicaciones basadas en dispositivos UDP o TCP a dispositivos remotos. El redireccionador TruePort de Perle ofrece conexiones de puerto COM o TTY fijas a aplicaciones basadas en serie, lo que permite la comunicación con dispositivos remotos conectados a los IOLAN de Perle bien en modo cifrado o bien en modo de texto claro. También puede crear un túnel de datos serie entre dispositivos a través de una red IP.
El software de administración de dispositivos de Perle proporciona un control centralizado de múltiples unidades, con lo que se consigue el máximo tiempo de actividad del equipo remoto.
Todos los modelos IOLAN SDG W cuentan con protección adicional frente a descargas electrostáticas y sobrecargas de corriente mediante unos resistentes circuitos de protección contra ESD de 15 Kv, lo que permite a las empresas y organizaciones utilizar esta solución en campo con plena confianza.
Garantía de por vida
Los Servidores de Dispositivos IOLAN SDG Serie a Ethernet de Perle cuenta con el respaldo del mejor servicio y soporte del sector, incluida la garantía de por vida exclusiva de Perle. Desde 1976, Perle viene ofreciendo a sus clientes productos de conexión a red que proporcionan los máximos niveles de rendimiento, flexibilidad y calidad.
Wi-Fi es una marca registrada de Wi-Fi Alliance Corporation
Topology Support
- Serial to WLAN
- Serial to ethernet
- Ethernet to WLAN
- Infrastructure ( to Access Point ) and secure peer to peer using SoftAP ( vs legacy “Ad-Hoc” )
Serial Port Access
- Connect directly using Telnet / SSH by port and IP address
- Connect with EasyPort menu by Telnet / SSH
- Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu
- Java-free browser access to remote serial console ports via Telnet and SSH
- Ports can be assigned a specific IP address ( aliasing )
- Multisession capability enables multiple users to access ports simultaneously on 2 and 4 port models
- Multihost access enables multiple hosts/servers to share serial ports
Accessibility
- In-band ( ethernet ) and out-of-band ( dial-up modem ) support
- Dynamic DNS enables users to find a console server from anywhere on the Internet
- Domain name control through DHCP option 81
- IPV6 and IPV4 addressing support
Availability
Primary/Backup host functionality enables automatic connections to alternate host(s)
Security
- SSH v1 and v2
- PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
- SSL Server and SSL client mode capability
- SSL Peer authentication
- IPSec VPN : NAT Traversal, ESP authentication protocol
- SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
- SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
- Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
- Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
- Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
- X.509 Certificate verification: RSA, DSA
- Certificate authority (CA) list
- Wireless LAN : WPA-PSK, WPA2-PSK & Enterprise ( EAP, PEAP, LEAP ), WEP, IEEE 802.11i, IEEE 802.1x supplicant
- Local database
- RADIUS Authentication, Authorization and Accounting
- TACACS+ Authentication, Authorization and Accounting
- LDAP, NIS, Kerberos Authentication
- RSA SecureID-agent or via RADIUS Authentication
- SNMP v3 Authentication and Encryption support
- IP Address filtering
- Disable unused daemons
- Active Directory via LDAP
Terminal Server
- Telnet
- SSH v1 and v2
- Rlogin
- Auto session login
- LPD, RCP printer
- MOTD - Message of the day
Serial machine to Ethernet
- Tunnel raw serial data across Ethernet - clear or encrypted
- Raw serial data over TCP/IP
- Raw serial data over UDP
- Serial data control of packetized data
- Share serial ports with multiple hosts/servers
- Virtual modem simulates a modem connection - assign IP address by AT phone number
- Virtual modem data can be sent over the Ethernet link with or without SSL encryption
- TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here
- TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity
- RFC 2217 standard for transport of serial data and RS232 control signals
- Customizable or fixed serial baud rates
- Plug-ins allow customer or Perle provided plug-ins for special applications
- Software Development Kit (SDK) available
- Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
- ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
- Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port
Console Management
- Sun / Oracle Solaris Break Safe
- Local port buffer viewing - 256K bytes per port
- External port buffering via NFS, encrypted NFS and Syslog
- Event notification
- Clustering - central console server enables access ports across multiple console servers
- Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
Remote Access
Dial, direct serial
PPP, PAP/CHAP, SLIP
HTTP tunneling enables firewall-safe access to remote serial devices across the internet
Automatic DNS Update
Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details
- Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
- Microsoft IPSEC VPN Client ( native to Windows Vista )
- Cisco routers with IPSEC VPN feature set
- Perle IOLAN SDS/STS and SCS models
OA&M ( Operations, Administration and Management )
- WiFi Protected Setup ( WPS )
- SNMP V3 - read and write, Perle MIB
- Syslog
- Perle Device Manager - Windows based utility for large scale deployments
- Configurable default configuration
- Installation Wizard
- Set a Personalized Factory Default for your IOLANs
Protocols
IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP
Hardware Specifications - IOLAN SDG W Serial Device Servers
CPU
Processor
600 Mhz ARM processor
Memory
RAM
512 MB
Flash
4000 MB
Interface Ports
Number of Serial Ports
IOLAN SDG1/2 W
1 or 2 (DB9M)
IOLAN SDG4 W
4 (RJ45)
Serial Port Interface
Software selectable EIA232/422/485
Back of product
IOLAN SDG1/2 W
IOLAN SDG4 W
Sun / Solaris
Sun / Oracle ‘Solaris' Safe - no break signal
sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds
300bps to 230Kbps with customizable baud rate support
Data Bits
Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data
Parity
Odd, Even, Mark, Space, None
Flow Control
Hardware, Software, Both, None
Serial Port Protection
15Kv Electrostatic Discharge Protection (ESD)
Local Console Ports
RS232 on Serial Port
Network
- Autosensing 1000Base-T /
- 100Base-TX / 10Base-T
- Auto-MDIX
- Software selectable Ethernet speed 1000/100/10
- Software selectable Half/Full/Auto duplex
Ethernet Isolation
1.5Kv Magnetic Isolation
Integrated Wireless Access
Wireless LAN standards
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.11i
Wireless Topology
Infrastructure (AP) and Peer to Peer- (SoftAP) modes
Wireless Radio
Dual-Band Radio ; 2.4GHz and 5GHz 20, 40Mhz SISO 2.4-GHz
Maximal Ratio Combining (MRC), Rx Diversity
2.4 GHz MRC support for up to 1.4 Extended Range and 5 GHz Diversity Capable
Wireless Data Rates
- 802.11n: 15, 30, 45, 60, 90, 120, 135, 150 Mbps (40Mhz channel @ 400ns Short GI)
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps
Operational Frequency Range (MHz)
- 2412 to 2484 MHz
- 4910 to 5825 MHz
Modulation
DSSS, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Wireless Receiver Sensitivity in dBm (2.4Ghz SISO)
- 1 Mbps: -95.0
- 2 Mbps: -92.0
- 5.5 Mbps: -89.2
- 6 Mbps: -91.0
- 9 Mbps: -89.0
- 11 Mbps: -86.3
- 12 Mbps: -88.0
- 18 Mbps: -85.5
- 24 Mbps: -82.5
- 36 Mbps: -79.0
- 48 Mbps: -74.0
- 54 Mbps: -72.7
- 7.2 Mbps (MCS0): -89.3
- 14.4 Mbps (MCS1): -86.5
- 21.7 Mbps (MCS2): -84.5
- 28.9 Mbps (MCS3): -81.5
- 43.3 Mbps (MCS4): -78.0
- 57.8 Mbps (MCS5): -73.5
- 65.0 Mbps (MCS6): - 71.5
- 72.2 Mbps (MCS7): -70.0
- 15.0 Mbps (MCS0): -89.3
- 30.0 Mbps (MCS1): -86.5
- 45.0 Mbps (MCS2): -84.5
- 60.0 Mbps (MCS3): -81.5
- 90.0 Mbps (MCS4): -78.0
- 120.0 Mbps (MCS5): -73.5
- 135.0 Mbps (MCS6): - 71.5
- 150.0 Mbps (MCS7): -70.0
Wireless Transmit Power in dBm (2.4Ghz SISO)
- 1 Mbps: 16.0
- 2 Mbps: 16.0
- 5.5 Mbps: 16.0
- 6 Mbps: 16.5
- 9 Mbps: 16.5
- 11 Mbps: 16.0
- 12 Mbps: 16.5
- 18 Mbps: 16.5
- 24 Mbps: 16.5
- 36 Mbps: 15.2
- 48 Mbps: 14.3
- 54 Mbps: 13.5
- MCS0 : 16.0
- MCS1 : 16.0
- MCS2 : 16.0
- MCS3 : 16.0
- MCS4 : 15.2
- MCS5 : 14.3
- MCS6 : 13.5
- MCS7 : 12.6
- MCS0 : 14.0
- MCS7 : 11.8
Wireless Receiver Sensitivity in dBm (5Ghz SISO)
- 6 Mbps: -92.5
- 9 Mbps: -90.5
- 12 Mbps: -90.0
- 18 Mbps: -87.5
- 24 Mbps: -84.5
- 36 Mbps: -81.0
- 48 Mbps: -76.5
- 54 Mbps: -74.6
- 7.2 Mbps (MCS0): -91.4
- 14.4 Mbps (MCS1): -88.0
- 21.7 Mbps (MCS2): -86.0
- 28.9 Mbps (MCS3): -83.0
- 43.3 Mbps (MCS4): -79.8
- 57.8 Mbps (MCS5): -75.5
- 65.0 Mbps (MCS6): - 74.0
- 72.2 Mbps (MCS7): -72.4
- 15.0 Mbps (MCS0): -88.5
- 150.0 Mbps (MCS7): -69.3
Wireless Transmit Power in dBm (5Ghz SISO)
- 6 Mbps: 18.0
- 9 Mbps: 18.0
- 12 Mbps: 18.0
- 18 Mbps: 18.0
- 24 Mbps: 17.4
- 36 Mbps: 16.5
- 48 Mbps: 15.8
- 54 Mbps: 14.5
- 7.2 Mbps (MCS0): 18.0
- 14.4 Mbps (MCS1): 18.0
- 21.7 Mbps (MCS2): 18.0
- 28.9 Mbps (MCS3): 18.0
- 43.3 Mbps (MCS4): 16.5
- 57.8 Mbps (MCS5): 15.8
- 65.0 Mbps (MCS6): 14.5
- 72.2 Mbps (MCS7): 12.0
- 15.0 Mbps (MCS0): 16.5
- 150.0 Mbps (MCS7): 12.0
Short Guard Interval (SGI)
800ns and 400ns (Short Guard Interval)
Wireless Antenna
Dual-band 2.4/5.0 GHz, Omni-directional, Dipole antenna, 50 Ohm, 2 dBi, black with RP-SMA / RSMA finger tighten connector. Same antenna can be used as Main and/or Diversity for increased wireless performance, signal reliability, and extended range.
Wireless Security
WEP, WPA-PSK, WPA2-PSK & Enterprise (EAP, PEAP, LEAP), 802.11i (includes hardware-accelerated Advanced Encryption Standard [AES]), 802.1x supplicant
Fast Wireless Roaming
Ideal for mobile applications, the IOLAN can transparently roam between APs (Access Points) that share the same ESS (Extended Service Set)
WiFi Protected Setup (WPS V2)
A plug and play set up feature where the IOLAN can easily connect to a WPS capable central access pointor SoftAP compliant device supporting WPS
Power
Power Supply
120 V / 230V AC to 12vDC Wall Power Adaptor included. (Barrel connector, commercial-grade temperature – 0 to 60C)
2 x Power Supply Selection
Use external power 9-30v DC on standard 5.5mm x 9.5mm x 2.1mm barrel socket or 2-pin terminal block
Nominal Input Voltage
12/24v DC
Input Voltage Range
9-30v DC
Typical Power Consumption @ 24v DC (Watts)
IOLAN SDG1/2 W
- 1 port : 3.96
- 2 port: 4.23
IOLAN SDG4 W
- 4.44
Indicators
LEDs
- Power/Ready
- Network Link
- Network Link Activity
- Serial: Transmit and Receive data per port
- Wireless Link
- Wireless Strength
Environmental Specifications
Heat Output (BTU/HR)
IOLAN SDG1/2 W
- 1 port: 13.5
- 2 port: 14.4
IOLAN SDG4 W
- 15.1
MTBF (Hours)
IOLAN SDG1/2 W
- 1 port : 222,675 Hours
- 2 port : 206,430 Hours
IOLAN SDG4 W
- 170,530 Hours
Operating Temperature
-40°C to 75°C (-40°F to 167°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5 to 95% (non condensing) for both storage and operation.
Case
SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating
IP40
Mounting
Wall or Panel mounting, DIN Rail mounting kit optional
Weight and Dimensions
Weight
IOLAN SDG1/2 W
- 0.25 kg (0.55 lbs)
IOLAN SDG4 W
- 0.4 kg (0.88 lbs)
Dimensions
IOLAN SDG1/2 W
- 90 x 76 x 24 mm
(3.5 x 3.0 x 0.9 in)
IOLAN SDG4 W
- 110 x 111 x 24 mm
(4.3 x 4.4 x 0.9 in)
Packaging
Shipping Dimensions
IOLAN SDG1/2 W
- 26 x 17 x7 cm
(10.2 x 6.7 x 2.8 in)
IOLAN SDG4 W
- 26 x 17 x7 cm
(10.2 x 6.7 x 2.8 in)
Shipping weight
IOLAN SDG1/2 W
- 0.55 kg (1.21 lbs)
IOLAN SDG4 W
- 0.71 kg (1.6 lbs)
Regulatory Approvals
Emissions
- FCC Part 15, Subpart B, Class B
- CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class B
- ICES-003, Issue 4, February 2004 (Canada)
- EN55022:1998 + A1:2000 + A2:2003 Class A
- EN61000-3-2 : 1995, Limits for Harmonic Current Emissions
- EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker
Immunity
- EN55024:1998 + A1:2001 + A2:2003
- EN61000-4-2: Electrostatic Discharge
- EN61000-4-3: RF Electromagnetic Field Modulated
- EN61000-4-4: Fast Transients
- EN61000-4-5: Surge
- EN61000-4-6: RF Continuous Conducted
- EN61000-4-8: Power-Frequency Magnetic Field
- EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety
- UL/EN/IEC 62368-1
- CAN/CSA C22.2 No. 62368-1
- IEC 60950-1 : 2005 (2nd Edition) + A1 : 2009 and
- EN 60950-1 : 2006 + A11 : 2009
- CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1,
- First Edition April 1st 2003 (Recognized Component)
Wireless Regulatory Domain
- FCC/ICES
- ETSI
- TELEC
Users are responsible for verifying approval for use in their individual countries.
Radio Approvals
- FCC Part 15.247 Subpart C (2.4 Ghz)
- FCC Part 15.407 Subpart E (5 Ghz)
- RSS-210 (Canada), RSS-Gen Issue 2 (Canada), ICES-003 Issue 4
- ETSI EN 301 489-1 (V1.9.2)
- ETSI EN 301 489-17 (V2.2.1)
- ETSI EN 300 328 (V1.8.1)
- ETSI EN 301 893 (V1.7.1)
Frequency Bands
FCC / ICES
- 2.412 to 2.462 GHz; 11 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.700 GHz, 8 channels (excluding 5.600 to 5.640 GHz)
- 5.745 to 5.825 GHz; 5 channels
ETSI
- 2.412 to 2.472 GHz; 13 channels
- 5.180 to 5.320 GHz; 8 channels
- 5.500 to 5.700 GHz, 8 channels (excluding 5.600 to 5.640 GHz)
MIC (formally TELEC)
- 2.412 to 2.472 GHz; 13 channels
- 4.920 to 4.980 GHz; 4 channels
- 5.030 to 5.091 GHz; 3 channels
- 5.180 to 5.240 GHz; 8 channels
5.500 to 5.700 GHz; 11 channels
Other
- Reach, RoHS and WEEE Compliant
- CCATS - G168387
- ECCN - 5A992
- HTSUS Number: 8517.62.0020
- Perle Limited Lifetime Warranty
IOLAN RJ45 Serial Connector Pinout
Pinout
1
2
3
4
5
6
7
8
Direction
in
out
in
out
in
N/A
in
out
EIA-232
DCD
RTS
DSR
TxD
RxD
GND
CTS
DTR
EIA-422
N/A
TxD+
N/A
TxD-
RxD+
GND
RxD-
N/A
EIA-485 Full Duplex
N/A
TxD+
N/A
TxD-
RxD+
GND
RxD-
N/A
EIA-485 Half Duplex
N/A
TxD+/RxD+
N/A
TxD-/RxD-
N/A
GND
N/A
N/A
IOLAN DB9M Serial Connector Pinout
Pinout
1
2
3
4
5
6
7
8
9
Direction
in
in
out
out
N/A
in
out
in
N/A
EIA-232
DCD
RxD
TxD
DTR
GND
DSR
RTS
CTS
N/A
EIA-422 Full Duplex
N/A
RxD+
TxD-
N/A
GND
N/A
TxD+
RxD-
N/A
EIA-485 Full Duplex
N/A
RxD+
TxD-
N/A
GND
N/A
TxD+
RxD-
N/A
EIA-485 Half Duplex
N/A
N/A
TxD-/RxD-
N/A
GND
N/A
TxD+/RxD+
N/A
N/A
Application Diagrams
Seamless Wireless Roaming
IOLAN SDS W units installed on mobile devices, such as fork lifts with a serial interface, can maintain a continuous connection to network services that are part of Wireless Access Point infrastructure that shares the same ESS ( Extended Service Set ).
TCP
A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from the Perle IOLAN W serial-Ethernet adapter.
UDP
For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.
Console Server
For access to remote console ports on routers, switches, etc. Perle IOLAN’s enable administrators secure access to these RS232 ports via in-band Reverse Telnet / SSH over wireless LANs.
COM/TTY
Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort.
Serial Tunneling over Wireless
Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling. Typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client.
Haga clic en un número de pieza para obtener información sobre pedidos
Imagen del producto
Descripción
Cable de alimentación y número de producto

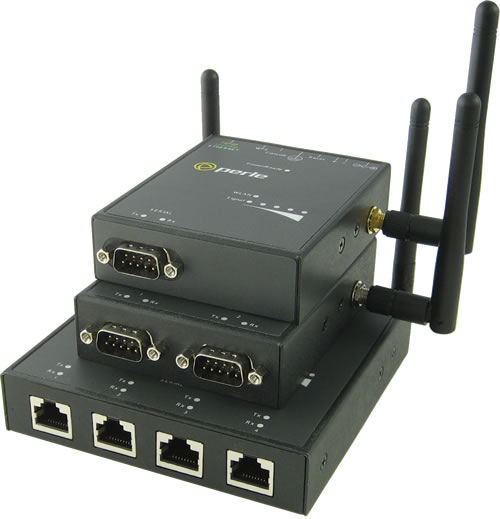

IOLAN SDG1 W Device Server: Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 1 x DB9M connector with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD
IOLAN SDG2 W Device Server: Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 2 x DB9M connectors with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD
IOLAN SDG4 W Device Server: Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 4 x RJ45 connectors with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD
Related Accessories
Accessory Image
Accessory Description
Part No.
DBA0010 - RJ-45F to DB-25F crossover (DTE) adapter #1100220-10 for console port. View Pinout
DBA0011 - RJ-45F to DB-25M crossover (DTE) adapter #1100230-10 for console ports. View Pinout
DBA0020 - RJ-45F to DB-9F crossover (DTE) adapter #1100240-10 for console ports. View Pinout
DBA0021 - RJ-45F to DB-9M crossover (DTE) adapter #1100250-10 for console ports. View Pinout
IOLAN Starter Kit (8-wire): 1x RJ-45 to DB-25 DTE Male adapter, 1x RJ-45 to DB-25 DCE Male adapter, 1x RJ-45 to DB-25 DTE Female adapter, 1x RJ-45 to DB-9 Male DTE adapter, 1x RJ-45 to DB-9 Female DTE adapter and 1x RJ45M-RJ45F Sun/Cisco crossover adapter
Extended Temperature UK power adapter for 12 volt Extended Temperature Terminal Servers, Media Converters and Ethernet Extenders
Extended Temperature EU power adapter for 12 volt Extended Temperature Terminal Servers, Media Converters and Ethernet Extenders
Extended Temperature USA power adapter for 12 volt Extended Temperature Terminal Servers, Media Converters and Ethernet Extenders
Extended Temperature SA power adapter for 12 volt Extended Temperature Terminal Servers, Media Converters and Ethernet Extenders
Extended Temperature AUS power adapter for 12 volt Extended Temperature Terminal Servers, Media Converters and Ethernet Extenders
DBA0031 8pck - 8 pack of #04030080 IOLAN-RJ45M to RJ45F Sun/Cisco crossover adapter. View Pinout
DBA0020 8pck - 8 pack of #04006970 IOLAN-RJ45F to DB9F (DTE) crossover adapter. View Pinout
DBA0021 8pck - 8 pack of #04006980 IOLAN-RJ45F to DB9M (DTE) crossover adapter. View Pinout
DBA0013 8pck - 8 pack of #04006990 IOLAN-RJ45F to DB25M Straight-thru adapter for modems. View Pinout
DIN Rail Clip designed to be used with the IOLAN SDG W and SDG L Device Servers
1 Port Terminal/Device/Console Server - Express Replacement
2 Port TerminalDevice/Console Server - Express Replacement
2 Port Terminal/Device/Console Server - Express Replacement French
4 Port Terminal/Device/Console Servers - Express Replacement
4 Port Terminal/Device/Console Servers - Express Replacement French
