Para aplicaciones de serie a Ethernet, el Terminal Server IOLAN SDSC es la serie de servidores de terminales, servidores de consolas y servidores de dispositivos más avanzada que se encuentra disponible.

Con el más alto rendimiento y un factor de forma 1U, un IOLAN SDS ofrece gran seguridad y flexibilidad y la tecnología IP de nueva generación (IPv6), lo que lo hace idóneo para aplicaciones que exijan comunicación, captura de datos o supervisión remota de dispositivos serie. Con 8, 16 o 32 puertos RJ45, el IOLAN SDSC ofrece el ajuste perfecto para su aplicación serie a Ethernet. La tecnología incorporada de ruta redundante y Dual Ethernet del IOLAN SDSC proporciona acceso fiable a puertos serie, lo que lo convierte en la solución más fiable para conectar equipos RS232, RS422 o RS485 remotos a Ethernet… todo ello con la mejor relación calidad-precio.

Idóneo para

  • Ingenieros de redes y jefes de proyecto que necesitan una interfaz serie a Ethernet de alto rendimiento para dispositivos serie basados en RS232 o RS485
  • Entornos en los que las rutas redundantes de red suministradas por interfaces Dual Ethernet tengan una importancia crítica

Razones por las que los Servidores de Terminales IOLAN SDSC son la opción preferida:

  • TrueSerial® proporciona las conexiones serie más auténticas a través de Ethernet
  • Los puertos serie universales RS232/422/485 (EIA-232/422/485) seleccionables por software impiden la manipulación mecánica sobre el terreno
  • Procesador de 400 Mhz, 750 MIPS y 32 bits con procesador de cifrado de hardware integrado para lograr el máximo rendimiento disponible en el mercado
  • Clusters – ofrece una vista única de todos los puertos de consola de falta de ancho de banda. Idóneo para grandes centros de datos
  • Soporte IP de nueva generación (IPv6) para proteger su inversión y lograr la compatibilidad de red
  • Funcionalidad de host principal/de respaldo que permite conexiones automáticas con hosts alternativos en el caso de que la conexión TCP principal esté fuera de servicio
  • Puertos serie RJ45 con conexiones Cisco para uso con cableado "enrollado" común CAT5
  • EasyPort Web – Acceso a los puertos de consola serie de su equipo mediante su navegador de Internet con capacidad Java
  • DNS dinámico – acceso sencillo a la administración de consolas desde cualquier lugar a través de Internet
  • Acceso de navegador sin código Java a puertos de consola serie remota a través de Telnet y SSH
  • Garantía de por vida – la mejor protección de su inversión disponible en el mercado

Software Features - IOLAN SDSC Dual Ethernet RS232 / RS485 / RS422 Terminal Server

Serial Port Access

Accessibility

Availability

Primary/Backup host functionality enables automatic connections to alternate host(s)

Security

  • SSH v1 and v2
  • PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
  • SSL Server and SSL client mode capability
  • SSL Peer authentication
  • IPSec VPN : NAT Traversal, ESP authentication protocol
  • SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
  • SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
  • Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
  • Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
  • Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
  • X.509 Certificate verification: RSA, DSA
  • Certificate authority (CA) list
  • Local database
  • RADIUS Authentication, Authorization and Accounting
  • TACACS+ Authentication, Authorization and Accounting
  • LDAP, NIS, Kerberos Authentication
  • RSA SecureID-agent or via RADIUS Authentication
  • SNMP v3 Authentication and Encryption support
  • IP Address filtering
  • Disable unused daemons
  • Active Directory via LDAP

Terminal Server

  • Telnet
  • SSH v1 and v2
  • Rlogin
  • Auto session login
  • LPD, RCP printer
  • MOTD - Message of the day

Serial machine to Ethernet

Console Management

Remote Access

Dial, direct serial

PPP, PAP/CHAP, SLIP

HTTP tunneling enables firewall-safe access to remote serial devices across the internet

Automatic DNS Update

Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details

IPSEC VPN client/servers

  • Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
  • Microsoft IPSEC VPN Client ( native to Windows Vista )
  • Cisco routers with IPSEC VPN feature set
  • Perle IOLAN SDS/STS and SCS models

OA&M ( Operations, Administration and Management )

  • SNMP V3 - read and write, Perle MIB
  • Syslog
  • Perle Device Manager - Windows based utility for large scale deployments
  • Configurable default configuration
  • Installation Wizard
  • Set a Personalized Factory Default for your IOLANs

Protocols

IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP

* Available on 2 and 4 port models

Hardware Specifications: IOLAN SDSC Rack Terminal Server

CPU

Processor

MPC8349E, 400 Mhz, 750 MIPS

Memory

RAM MB

IOLAN SDS8C

64

IOLAN SDS16C

64

IOLAN SDS32C

128

Flash MB

IOLAN SDS8C

16

IOLAN SDS16C

16

IOLAN SDS32C

16

Interface Ports

Number of Serial Ports

IOLAN SDS8C

8

IOLAN SDS16C

16

IOLAN SDS32C

32

Serial Port Interface

Software selectable RS232 / RS485 / RS422 DTE on RJ45 - RS485: full and half duplex

Sun / Solaris

Sun / Oracle ‘Solaris' Safe - no break signal sent during power cycle causing costly server re-boots or downtime

Serial Port Speeds

50bps to 230Kbps with customizable baud rate support

Data Bits

Configurable for 5,6,7 or 8-bit protocol support

Use TruePort to transparently pass 9-bit serial data

Parity

Odd, Even, Mark, Space, None

Flow Control

Hardware, Software, Both, None

Serial Port Protection

15Kv Electrostatic Discharge Protection (ESD)

Local Console Ports

RS232 on RJ45 with DB9 adapter (provided)

Network

  • Dual 10/100/1000-base TX ethernet RJ45
  • Software selectable Ethernet speed 10/100/1000, Auto
  • Software selectable Half/Full/Auto duplex

Power

Power Supply

  • USA models - IEC320-C13 to NEMA 5-15P line cord
  • UK models - IEC320-C13 to BS1363 line cord
  • EU models - IEC320-C13 to CEE 7/7 Schuko
  • South Africa Models - IEC320-C13 to BS546 line cord
  • Australia models - IEC320-C13 to AS3112 line cord

Nominal Input Voltage

110/230v AC

Input Voltage Range

100-240v AC

AC Input Frequency

47-63Hz

Typical Power Consumption (Watts)

IOLAN SDS8C

14.0

IOLAN SDS16C

15.0

IOLAN SDS32C

16.0

Indicators

LEDs

  • Power
  • System Ready
  • Network Link activity for each ethernet port
  • Serial: Transmit and Receive data per port

Environmental Specifications

Heat Output (BTU/HR)

IOLAN SDS8C

47.77

IOLAN SDS16C

51.18

IOLAN SDS32C

54.59

MTBF (Hours)

IOLAN SDS8C

124,366 Hours

IOLAN SDS16C

106,970 Hours

IOLAN SDS32C

87,003 Hours

Calculation model based on MIL-HDBK-217-FN2 @ 30°C

Operating Temperature

0°C to 55°C, 32°F to 131°F

Storage Temperature

-40°C to 85°C, (-40°F to 185°F)

Humidity

5 to 95% (non condensing) for both storage and operation.

Case

SECC Zinc plated sheet metal (1 mm)

Ingress Protection Rating

IP30

Mounting

1U - 19' rack, front and rear mounting hardware included

Product Weight and Dimensions

Weight

IOLAN SDS8C

3.0 Kg, 6.6 lbs

IOLAN SDS16C

3.1 Kg, 6.8 lbs

IOLAN SDS32C

3.2 Kg, 7.0 lbs

Dimensions

1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)

Packaging

Shipping Weight

IOLAN SDS8C

4.2 Kg, 9.2 lbs

IOLAN SDS16C

4.3 Kg, 9.5 lbs

IOLAN SDS32C

4.5 Kg, 9.9 lbs

Shipping Dimensions

59 x 36 x 9 (cm), 23 x 14 x 3.5 (in)

Regulatory Approvals

Emissions

  • FCC Part 15, Subpart B, Class A
  • CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
  • ICES-003, Issue 4, February 2004 (Canada)
  • CISPR 32:2015/EN 55032:2015 (Class A)
  • EN55011 (CISPR11)
  • EN61000-3-2 : 2010, Limits for Harmonic Current Emissions
  • EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker

Immunity

  • CISPR 24:2010/EN 55024:2010
  • EN61000-4-2: Electrostatic Discharge
  • EN61000-4-3: RF Electromagnetic Field Modulated
  • EN61000-4-4: Fast Transients
  • EN61000-4-5: Surge
  • EN61000-4-6: RF Continuous Conducted
  • EN61000-4-8: Power-Frequency Magnetic Field
  • EN61000-4-11: Voltage Dips and Voltage Interruptions

Safety

  • UL/EN/IEC 62368-1
  • CAN/CSA C22.2 No. 62368-1
  • IEC 60950-1(ed 2); am1, am2 and
  • EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
  • CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, First Edition April 1st 2003 (Recognized Component)

Other

  • Reach, RoHS and WEEE Compliant
    Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012
  • CCATS - G168387
  • ECCN - 5A992
  • HTSUS Number: 8517.62.0020
  • Perle Limited Lifetime warranty

IOLAN RJ45 Serial Connector Pinout

pinout
RJ45 Socket

Pinout

1

2

3

4

5

6

7

8

Direction

out

out

out

N/A

N/A

in

in

in

EIA-232

RTS

DTR

TxD

GND

GND

RxD

DSR

CTS

EIA-422

TxD+

N/A

TxD-

GND

GND

RxD+

N/A

RxD-

EIA-485 Full Duplex

TxD+

N/A

TxD-

GND

GND

RxD+

N/A

RxD-

EIA-485 Half Duplex

DATA+

N/A

DATA-

GND

GND

N/A

N/A

N/A

Optional Perle adapters for use with straight thru CAT5 cabling

Select a Model to obtain a Part Number – IDS-409F
Operating Temperature (Std) = -10° C to 60° C (14° F to 140° F)

Models with 6 x 10/100/1000Base-T (RJ45) Connectors

Model

Choose your Fiber Connections from the table below
100Base-X Duplex Fiber

Fiber
Connectors

Transmit
(dBm)

Receive
(dBm)

Power
Budget
(dB)

Wavelength
(nm)

Fiber
Type

Operating
Distance

Min

Max

Min

Max

IDS-409F3-C2MD2-SD20

2 x Duplex SC

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

1 x Duplex SC

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

IDS-409F3-T2MD2-SD20

2 x Duplex ST

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

1 x Duplex ST

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

IDS-409F3-C2MD2-SD40

2 x Duplex SC

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

1 x Duplex SC

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

IDS-409F3-T2MD2-SD40

2 x Duplex ST

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

1 x Duplex ST

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

IDS-409F3-C2MD2-SD80

2 x Duplex SC

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

1 x Duplex SC

-5.0

0.0

-34.0

-3.0

29.0

1550

SMF

80 km
(50 mi)

IDS-409F3-T2MD2-SD80

2 x Duplex ST

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

1 x Duplex ST

-5.0

0.0

-34.0

-3.0

29.0

1550

SMF

80 km
(50 mi)

IDS-409F3-C2MD2-SD120

2 x Duplex SC

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

1 x Duplex SC

0.0

5.0

-35.0

-3.0

35.0

1550

SMF

120 km
(75 mi)

IDS-409F3-T2MD2-SD120

2 x Duplex ST

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

1 x Duplex ST

0.0

5.0

-35.0

-3.0

35.0

1550

SMF

120 km
(75 mi)

IDS-409F3-C2SD20-MD2

1 x Duplex SC

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

2 x Duplex SC

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

IDS-409F3-T2SD20-MD2

1 x Duplex ST

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

2 x Duplex ST

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

IDS-409F3-C2SD20-SD40

2 x Duplex SC

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

1 x Duplex SC

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

IDS-409F3-T2SD20-SD40

2 x Duplex ST

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

1 x Duplex ST

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

IDS-409F3-C2SD20-SD80

2 x Duplex SC

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

1 x Duplex SC

-5.0

0.0

-34.0

-3.0

29.0

1550

SMF

80 km
(50 mi)

IDS-409F3-T2SD20-SD80

2 x Duplex ST

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

1 x Duplex ST

-5.0

0.0

-34.0

-3.0

29.0

1550

SMF

80 km
(50 mi)

IDS-409F3-C2SD20-SD120

2 x Duplex SC

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

1 x Duplex SC

0.0

5.0

-35.0

-3.0

35.0

1550

SMF

120 km
(75 mi)

IDS-409F3-T2SD20-SD120

2 x Duplex ST

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

1 x Duplex ST

0.0

5.0

-35.0

-3.0

35.0

1550

SMF

120 km
(75 mi)

IDS-409F3-C2SD40-MD2

2 x Duplex SC

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

1 x Duplex SC

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

IDS-409F3-T2SD40-MD2

2 x Duplex ST

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

1 x Duplex ST

-20.0

-12.0

-31.0

-14.0

11.0*

1310

MMF

5 km*
(1.2 mi)

IDS-409F3-C2SD40-SD20

2 x Duplex SC

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

1 x Duplex SC

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

IDS-409F3-T2SD40-SD20

2 x Duplex ST

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

1 x Duplex ST

-18.0

-7.0

-32.0

-3.0

14.0

1310

SMF

20 km
(12.4 mi)

IDS-409F3-C2SD40-SD80

2 x Duplex SC

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

1 x Duplex SC

-5.0

0.0

-34.0

-3.0

29.0

1550

SMF

80 km
(50 mi)

IDS-409F3-T2SD40-SD80

2 x Duplex ST

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

1 x Duplex ST

-5.0

0.0

-34.0

-3.0

29.0

1550

SMF

80 km
(50 mi)

IDS-409F3-C2SD40-SD120

2 x Duplex SC

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

1 x Duplex SC

0.0

5.0

-35.0

-3.0

35.0

1550

SMF

120 km
(75 mi)

IDS-409F3-T2SD40-SD120

2 x Duplex ST

-5.0

0.0

-34.0

-3.0

29.0

1310

SMF

40 km
(25 mi)

1 x Duplex ST

0.0

5.0

-35.0

-3.0

35.0

1550

SMF

120 km
(75 mi)


* 1db/km multimode 50/125 micron fiber cable



Single Fiber (Simplex / BiDi) Models Recommended use in pairs

Industrial Ethernet Switch Accessories

Panel Mount kit PM3

Brackets for attaching 30 to 75 mm wide Perle IDS industrial switches inside a control panel or to a wall for wall.

Rack Mount Kit RM4U

Bracket for mounting Perle DIN Rail switches in a standard 19” rack. Occupies “4U” of vertical rack space. 275 mm (10 inches) deep
UNO-PS/1AC/24DC/150W Power Supply

UNO-PS/1AC/24DC/150W Power Supply - DIN-Rail 24 VDC , 150 Watt power supply with universal 85 to 264 VAC, -25 to 70°C extended operating temperature. Power Supply Specifications.

DBA0020C

RJ-45F to DB-9F crossover (DTE) adapter for Perle serial console ports with Sun/Cisco pinout.  #1100300-10

Application Diagrams

TCP

Using RAW TCP Sockets

A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from the Perle IOLAN serial-Ethernet adapter.

diagram-tcp

UDP

Using Raw UDP Sockets

For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.

diagram-udp

Console Server

Console Management

For access to remote console ports on routers, switches,etc, Perle IOLAN’s enable administrators secure access to these RS232 ports via inband Reverse Telnet / SSH or out of band with dial-up modems. Perle IOLAN models with integrated modems are available.

diagram console

COM/TTY

Connect Serial-based Applications with a COM/TTY Port Driver

Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort.

diagram com tty

Tunneling

Serial Tunneling between two Serial Devices

Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling (typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client).

diagram tunneling

Virtual Modem

Virtual Modem

Enables the serial-Ethernet adapter to simulate a modem connection. When connected to the IOLAN and initiates a modem connection, the IOLAN starts up a TCP connection to another IOLAN serial-Ethernet adapter configured with a Virtual Modem serial port or to a host running a TCP application.

diagram modem

Asistente de Instalación “Easy Config”

Easy Config Screenshot

Nota técnica: Easy Config: El asistente de instalación de Perle de uso fácil. Configure rápidamente los servidores de terminales IOLAN en la mayoría de las aplicaciones más conocidas

Serie con compatibilidad SSL/TLS

IOLAN Console Servers for OOBM

Notas técnicas de Perle Systems: Serie con compatibilidad SSL (capa de sockets seguros) en los servidores de terminales IOLAN SDS, STS y SCS

Control de Datos de Serie

IOLAN Console Servers for OOBM

Ajuste el flujo de datos entre un dispositivo de red y el equipo serie con los servidores de dispositivos IOLAN.

Software Development Kit

Download Perle’s SDK to quickly develop any custom application for IOLAN Serial Terminal Servers to solve unique serial to Ethernet connectivity challenges.

Utilidad de redireccionador TruePort

TruePort Diagram

Utilidad de Redireccionador de Puerto COM - Crea puertos COM (puertos serial) virtual a través de Ethernet. El software es gratuito con cada equipo Perle IOLAN

Device Plug-in - True COM-Port Operation

If you have a device that you are struggling attach to your network, we will match you up with an existing Device Plug-in, or tailor one for you.

Redundant Path Technology

RPS Redundant Path Technology

Nota de aplicación: La tecnología de sistema redundante garantiza el acceso de puertos en serie a través de modos de acceso a red de espera activa y dobles en servidores IOLAN con Ethernet dual

EasyPort WebAccess

Diagram Easy Port Web Access

Perle's EasyPort Web provides an easy and convenient view of all authorized serial ports on an IOLAN or IOLAN cluster using an internet browser.

Gestión centralizada de clústeres seguros

Secure Clustering Diagram

Los Servidores de Consola IOLAN tienen incorporado un Software de Gestión Centralizada para el acceso 24/7 a todos los puertos de la consola de la infraestructura de TI desde una sola vista, incluso durante las averías de la red.

Direct IP Addressing

RPS Direct IP Addressing Diagram

With Perle's IP Aliasing, addressable names can be assigned to serials port on IOLAN Terminal Servers for easy port identification.

Automatic DNS Update

RPS Automatic DNS Update Diagram

IOLANs have the ability to work with DNS Servers to associate its given names with its allocated IP addresses. This standard mechanism is widely used by the internet and large enterprises to associate names to IP addresses.

Serie verdadera

IOLAN Terminal Servers

Nota Técnica TrueSerial : Uso de los Terminal Servers IOLAN de Perle para ofrecer la conexión en serie más auténtica a través de una red Ethernet.

Registro de Datos de Serie

serial data logging diagram

Nota técnica de Perle: El registro de datos de serie en los servidores de terminales de serie a Ethernet IOLAN almacenará datos de serie hasta que se active la sesión TCP/IP.

Puerta de enlace VPN IPSEC

VPN IPSec and Serial Tunneling with TruePort

Nota Técnica: Los servidores de terminales IOLAN pueden usarse en infraestructura VPN IPSec para ofrecer autenticación y cifrado sólidos de paquetes IP.

Out-of-Band Management of Windows Server 2003/2008 using PerleÆs Simple EMS/SAC Web Interface

IOLAN EasyPort Web screenshot

Herramienta de interfaz gráfica de usuario basada en navegador permite a los administradores de Windows Servers acelerar la recuperación de sistemas

IP-Encapsulation of Automation Protocols

Diagram IP-Encapsulation

Perle's TruePort COM port re-director can provide the IP-Encapsulation for tunneling of serial data into network packets and the transport of the data over a network.

Multihost - Compartir un puerto en serie con varios servidores

multihost diagram

Notas Técnicas de Perle Systems - Multihost tiene la capacidad de compartir un puerto en serie a través de varios servidores TCP o UDP

Gestión de Consolas en un Entorno Solaris

Out of Band Network Access to Solaris Servers

Nota técnica: Para que los servidores de consolas IOLAN eviten las señales de «corte», estos deben estar apagados. Esto acaba con los tiempos de inactividad accidentales

Túnel Serie - Túnel de datos serie sin procesar a través de Ethernet

Serial Tunneling Encapsulation

La creación de túneles serie permite transmitir datos serie en una red IP mediante el uso de un enlace a través de Ethernet entre dos equipos IOLAN

HTTP Tunneling

Connecting behind the firewall diagram

By encorporating HTTP Tunneling technology, Perle IOLANÆs are the first and only serial device servers to securely connect and transport serial data for transport between remote serial peers over the internet without the need to change firewall settings.

Soporte de seguridad AAA en los Conversores de Medios de Fibra

Data Protection

Nota técnica : Comprender los esquemas de seguridad de autenticación, autorización y contabilización AAA que protegen las redes contra el acceso no autorizado.

Sesiones de administración seguras SSH, SNMPv3 y HTTPS

Data Protection

El acceso del administrador de la red y del usuario al equipo debe realizarse a través de métodos de autenticación adecuados que utilicen sesiones SSH, SSL/TLS, SNMPv3 o HTTPS cifradas.

OSM Helps Hospitals Distribute Lab Data Quickly and Reliably

OSM Helps Hospitals Distribute Lab Data Quickly and Reliably with Perle IOLAN Terminal Server

OSM chose Perle IOLAN+ Terminal Servers for their OPUS::L solution due to their reliability in providing critical lab results at the right time to allow the doctors to start effective life saving measures. The integration into their software was quick and easy.

Allstream Saves Time and Money with Perle Console Server

Allstream

Allstream provides managed services for growing infrastructure. Their data center offers security, monitoring, and application flexibility. They chose Perle's console server to prevent downtime and ensure reliable support for customers.

Ace Hardware with JetStream

ACE Harware

Ace Hardware uses the Perle Terminal Server and it delivered an integrated multifunction solution for serial and parallel networking applications. It would also cut the cost of ownership and the need for multiple units by acting as a terminal server, remote access server, and modem pool.

Nasantara Aircraft Industry upgrades the factory floor

IOLAN Terminal Server

Perle Terminal Servers supply Numerical Control (NC) files to Computer Numerical Control (CNC) machines on the shop floor of an extensive manufacturing plant.

Precise GPS Positioning with IOLAN+

Subsea 7

Subsea 7 uses the Perle IOLAN+ serial server to power a cutting-edge GPS technology solution for precise positioning and navigation services. It has proven to be a robust and compact solution for data transfer, earning our continued trust and satisfaction.

Soporte por SFPs de Cisco en los Conversores de Medios de Fibra Perle

France Telecom - Perle CS9000 Console Server Diagram

El servidor de consola de Perle reduce los costes de mantenimiento de France Telecom

Jamaica's Ministry of Finance chooses IOLAN for its Compatibility and Savings

IOLAN Terminal Server

Terminal Servers were installed throughout the building to network enable 180 user terminals for access to system host servers.

Forties Oil Field uses Terminal Server Technology to Interface with SCADA System for Oil Flow Control

Perle IOLAN SDS Device Server Diagram

Forties Oil Field uses Terminal Server technology to transmit performance information about pumps to the main control room via Ethernet network, facilitating oil flow control through SCADA system.

Arrow converts a 6,300 retail outlet POS system to a LAN based infrastructure

Terminal Server Diagram

Los servidores de terminales Perle conectan en red 90.000 dispositivos en serie y retrasan el fin de vida útil de los equipos existentes hasta 8 años

BT elige servidores de terminales Perle para acceso y administración remotos de LDU

Perle IOLAN STS8 DC Terminal Servers were installed in over 2400 BT Telco Exchanges

Caso práctico de Perle Systems y BT: el uso de un servidor de terminales IOLAN permite un soporte de líneas telefónicas domésticas más rápido y asequible.

Lockheed Martin elige Servidores de Consolas Perle para reemplazar Servidores de Acceso Cisco

Lockheed Martin Logo

Lockheed Martin elige servidores de consolas Perle para reemplazar servidores de acceso descontinuados 2509 de Cisco, que quedaban fuera de uso

El Departamento de Energia de los Estados Unidos utiliza los Servidores de Terminales Perle para cumplir la norma NERC CIP

Department of Energy Diagram

Los Servidores de Terminales IOLAN proveen distintos niveles de autenticación a las PMU a través de RADIUS y aseguran el cumplimiento de la norma NERC CIP.

Sainsbury’s integrate Perle Terminal Servers into Warehouse Distribution System

Sainsbury's IOLAN Terminal Server Network Diagram

Sainsbury’s integra los servidores de terminales de Perle en el sistema de distribución de sus almacenes

Rackspace® Hosting aprovecha los servidores de consolas de Perle para la configuración previa y solución de problemas de red en los centros de datos

Remote Console Management

Implantar servidores de consolas Perle en la red interna de Rackspace y en cada uno de los centros de datos para configuración previa y resolución de problemas.

Bally Technologies utiliza los servidores de terminales de Serie a Ethernet para ofrecer una alta disponibilidad (HA) con la última plataforma de virtualización ACSC

The redesigned Bally network with Perle Terminal Servers upgrade

Los Terminal Servers de Perle permiten a Bally simplificar su arquitectura informática, trasladar los equipos e incrementar la capacidad de datos

Tesla integra dispositivos 100Base-FX basados en fibra ya existentes en una nueva red troncal Gigabit

Tesla Motors integrates existing 100Base-FX fiber based devices into new Gigabit backbone

Perle Aplicación: Tesla Motors integra dispositivos 100Base-FX basados en fibra ya existentes en una nueva red troncal Gigabit

Memset Hosting escoge los servidores de consolas de Perle para situarlos en la parte superior de los bastidores

Remote Console Management

servidores de Memset Hosting

Aker Solutions elige los servidores de dispositivos Perle para alto rendimiento de transmisión de datos

Diagram Aker Solutions

Los servidores de dispositivos Perle IOLAN SDS permiten establecer una comunicación de serie a Ethernet fundamental entre los equipos de superficie y los sumergidos.

Bet365 sustituye las soluciones de administración fuera de banda poco fiables por servidores de consolas Perle en centros de datos de todo el mundo

Bet365 Out of Band Management

Perle sustituye los servidores de consolas inestables por administración fuera de banda y autenticación TACACS para beneficiarse de una red disponible al 100%

SmartSky Networks utiliza los servidores de consolas de Perle para el acceso y la gestión remotos de los equipos de estaciones de tierra repartidos por Estados Unidos

SmartSky Diagram

SmartSky Networks necesitaba una forma de gestionar y acceder a los equipos especializados en estaciones de tierra remotas repartidas por Estados Unidos. Cisco recomendó los servidores de consolas de Perle.

Broadcom utiliza servidores de terminales Perle en laboratorios de investigación y desarrollo

Broadcom location Diagram

Los servidores de terminales IOLAN de Perle transmiten datos de serie desde los bancos de pruebas de microcontroladores a servidores remotos a través de Ethernet.

CPP Wind Engineering utiliza los servidores de dispositivos IOLAN de Perle en los casos en los que no hay lugar para los fallos de los equipos

Skyscraper Network Diagram using device servers

Recopilar datos de los anemómetros, dispositivos utilizados para medir la velocidad y la dirección del viento, montados en la parte superior y en los laterales de los rascacielos.

QBE normaliza los Servidores de Consolas IOLAN de Perle para la administración fuera de banda

OOBM Diagram

Los Servidores de Consolas IOLAN ofrecen un acceso seguro a los centros datos y equipos informáticos de sucursales cuando la red haya caído.

Uso de servidores de consola para gestión fuera de banda en los centros de datos del campus universitario

Perle IOLAN Console Servers

Los servidores de consola IOLAN permiten el acceso al puerto de consola fuera de banda en la parte superior del bastidor para todos los switches, controladores WLAN y servidores VPN en la infraestructura de red del centro de datos.

El condado de Clearwater elige servidores de consola de Perle para la gestión fuera de banda de microcentros de datos

Diagram showing IOLAN Console Servers providing out-of-band management to Clearwater County micro data centers

Para la gestión de microcentros de datos en una extensa ubicación geográfica se necesita un método fiable para acceder y gestionar de forma remota varios sitios. Bradley Welygan, administrador de sistemas de TI del condado de Clearwater, afirma: "Utilizamos servidores de Consola para la conectividad con varios puntos de presencia repartidos por todo el condado para la gestión fuera de banda de la fibra y los equipos de red. Habíamos estado utilizando otro proveedor, pero su precio era demasiado elevado. Desde el punto de vista de la funcionalidad, los productos de Perle ofrecen lo que necesitamos a un coste más asequible."

US Furniture Retail Chain deploys secure data links from credit card reader to remote application server

IOLAN SDS1 Terminal Server

IOLAN Device Servers use serial COM ports to network enable terminals with debit/credit card readers.

Vmodem to replace serial dial-up modems & use AT command sets over Ethernet

Device Servers with Virtual Modem technology

Perle Device Servers with a Virtual Modem behave like a real modem for dial-up applications. They enable devices to connect to remote locations without modifying existing software, eliminating phone charges, and delivering a dedicated and faster connection.

A Municipality Saves Costs When Adding Video Detection to Intersections by using IOLAN Device Servers

Traffic IOLAN Device Server Serial to Ethernet Diagram

Ethernet-based video detection is useful for managing and controlling traffic, providing emergency vehicles and incident management with real-time feedback. A northeastern US municipality replaced older serial to fibre converters with high-performance, cost-efficient IOLAN Device Servers.

DOT Easily Adds VMS to Existing Network

Serial to ethernet conversion in a traffice management system

The Department of Transportation (DOT) using Perle Device Servers in order to Ethernet enable traffic controllers. Perle IOLANs had allowed them to maintain the use of existing traffic controllers when they upgraded the network to a bandwidth for new video technology.

A Leading Telecommunication Company Enables Remote Administration of Billing Servers Using Perle Console Servers

Diagram Telco

Remote administration and management of Servers and Switches held in billing servers located throughout the world possible with Perle Console Servers.

El servidor de terminales Perle mejora la capacidad de realizar llamadas

Diagram CNC

Nota de aplicación Serie a Ethernet Perle: Un proveedor de subtitulado electrónico mejora la capacidad de discado con servidores de terminales Perle

Fortune 500 Automotive Company Chooses Perle Device Server To Increase Efficiency On The Shop Floor

Diagram CNC

IOLAN Device Servers network enable multiple CNC machines on the plant floor. Centralized network access to the machines decrease human error and increase manufacturing efficiency.

Administración fuera de banda de routers, conmutadores y firewalls Cisco

Out of Band Network Access

Nota técnica sobre los servidor de consolas: Cómo los Servidores de Consolas IOLAN de Perle proporcionan un método eficiente para recuperación en caso de caída de la red

A Major Telecom Provider Exceeds 99.85% Uptime Through Remote Call Center Management

Perle IOLAN SCS 16

IOLAN Console Servers provided remote access and management of 60 Sun Servers through the company network.

A National Electrical Grid Implements Monitoring and Control over New Shared Telecommunications Networks

Perle Serial Card Diagramm

Perle Terminal Servers provide network connectivity and advanced security for 60 remotely managed stations

Console Management enhances data security at a renowned world banking institution

spain bank - Perle Console Server diagram

Console Servers provide secure remote access to multiple distributed Ethernet switches and ensure all network data transmissions are secure.

The military enhances communications in command and control situations

IOLAN Terminal Server

Terminal Servers provide a configurable, transportable integrated system capable of communicating with multiple devices in a mobile setting.

Retail Distribution Centre with IOLAN Terminal Servers

IOLAN Terminal Server

IOLAN Terminal Servers are the ideal choice for meeting serial connectivity needs of today, while an organization lays the foundation for future deployments.

Leading Supplier Standardizes Its Radiation Monitoring Protection Systems

Bartlett

IOLAN Terminal Servers transmit air quality, personnel exposure, temperature and humidity data gathered by a radiation safety monitoring system to a central location to ensure worker safety.

Compatibilidad con Pasarelas Modbus

Modbus Master Gateway Diagram

Conectar equipos Modbus RTU o ASCII a las redes Modbus/TCP. Transmitir datos Modbus RTU o ASCII sobre Ethernet por cable o inalámbrico (LTE o WiFi) con Servidores de Dispositivos IOLAN.

Optimizing Data Acquisition - A Serial Matter

A discussion paper for system administrators

Administración Fuera de Banda: ¿Qué es y por qué la necesito?

Out of Band Network Access

La Administración Fuera de Banda es un método de acceso alternativo seguro y exclusivo a una red informática para administrar los dispositivos conectados y los activos informáticos sin utilizar la LAN corporativa

The Evolution of Terminal Servers

Moving from serial cards to terminal servers

A whitepaper discussing how Terminal Servers evolved over time

Haga clic en un número de pieza para obtener información sobre pedidos

Imagen del producto

Descripción

Cable de alimentación y número de producto

IOLAN SDS8C Device Server | | Serial to Ethernet | Perle

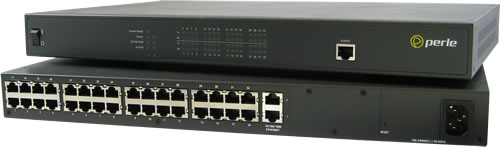

IOLAN SDS8C Secure Device Server ( Terminal Server ) - 8 x RJ45 connector with Sun/Cisco pinout, 1U rack mount, software selectable RS232/422/485 interface, dual 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD

IOLAN SDS16C Device Server | | Serial to Ethernet | Perle

IOLAN SDS16C Secure Device Server ( Terminal Server ) - 16 x RJ45 connector with Sun/Cisco pinout, 1U rack mount, software selectable RS232/422/485 interface, dual 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD

IOLAN SDS32C Device Server | | Serial to Ethernet | Perle

IOLAN SDS32C Secure Device Server ( Terminal Server ) - 32 x RJ45 connector with Sun/Cisco pinout, 1U rack mount, software selectable RS232/422/485 interface, dual 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD

Related Accessories

Accessory Image

Accessory Description

Part No.

3m Cbl-Straighthru | Perle

3 meter RJ45 to RJ45 CAT5 Straight-thru cable #1100360-10

04005120
3m Cbl-Rolled Cable | Perle

3 meter RJ45 to RJ45 CAT5 Rolled (crossover) cable #1100370-10 for use with IOLAN C models

04005130
DBA0010C Adapter for Console Port | Perle

DBA0010C - RJ-45F to DB-25F crossover (DTE) adapter #1100270-10 for IOLAN. View Pinout

04007010
DBA0011C Adapter for Console Port | Perle

DBA0011C - RJ-45F to DB-25M crossover (DTE) adapter #1100280-10 for IOLAN. View Pinout

04007020
DBA0013C Adapter for Console Port | Perle

DBA0013C - RJ-45F to DB-25M straight-thru (DCE) adapter #1100290-10 for modems on IOLAN. View Pinout

04007030
DBA0020C Adapter for Console Port | Perle

DBA0020C - RJ-45F to DB-9F crossover (DTE) adapter #1100300-10 for Perle serial console ports with Sun/Cisco pinout. View Pinout

04007040
DBA0021C Adapter for Console Port | Perle

DBA0021C - RJ-45F to DB-9M crossover (DTE) adapter #1100310-10 for IOLAN. View Pinout

04007050
DBA0031C Adapter for Console Port | Perle

DBA0031C - RJ-45m to RJ-45F SUN/Cisco crossover adapter #1100320-10 for IOLAN. View Pinout

04007060
IOLAN C Model Wiring Starter Kit | Perle

C Model Kit Includes: (1) RJ-45 to DB-25 DTE Male adapter, (1) RJ-45 to DB-25 DCE Male adapter, (1) RJ-45 to DB-25 DTE Female adapter, (1) RJ-45 to DB-9Male DTE adapter, (1) RJ-45 to DB-9 Female DTE adapter and (1) RJ45M-RJ45F Sun/Cisco crossover adapter.

DBA0023C Adapter for Console Port | Perle

DBA0023C - RJ-45F to DB-9M straight-thru (DCE) adapter #1100350-11 for modems on IOLAN with Sun/Cisco pinout. View Pinout

04007210
DBA0031C 8pck | 8-unit pack of DBA0031C | Perle

DBA0031C 8pck - 8 pack of #04007060 RJ45M to RJ45F Sun/Cisco crossover adapter for IOLAN. View Pinout

04031290
DBA0010C 8pck | 8-unit pack of DBA0010C | Perle

DBA0010C 8pck - 8 pack of # 04007010 RJ45F to DB-25F (DTE) crossover adapter for IOLAN. View Pinout

04031300
DBA0011C 8pck | 8-unit pack of DBA0011C | Perle

DBA0011C 8pck - 8 pack of #04007020 RJ45F to DB25M (DTE) crossover adapter for IOLAN. View Pinout

04031310
DBA0020C 8pck | 8-unit pack of DBA0020C | Perle

DBA0020C 8pck - 8 pack of #04007040 RJ45F to DB9F (DTE) crossover adapter for IOLAN. View Pinout

04031320
DBA0021C 8pck | 8-unit pack of DBA0021C | Perle

DBA0021C 8pck - 8 pack of #04007050 RJ45F to DB9M (DTE) crossover adapter for IOLAN. View Pinout

04031330
DBA0013C 8pck | 8-unit pack of DBA0013C | Perle

DBA0013C 8pck - 8 pack of #04007030 RJ45F to DB25M Straight-thru adapter for modems on IOLAN. View Pinout

04031340
IOLAN Rack DIN Rail | Perle

DIN Rail Mounting Kit for select IOLAN Rack models

NSS- 8 PortXPRESSRE- Maintenance agreement | Perle

8 Port Terminal/Device/Console Servers - Express Replacement

NSS- 8 PortXPRESSREPF Maintenance agreement | Perle

8 Port Terminal/Device/Console Servers - Express Replacement French

NSS-16 PortZPRESSREP Maintenance agreement | Perle

16-18 Port Terminal/Device/Console Servers - Express Replacement

NSS-16 PortZPRESSREPF Maintenance agreement | Perle

16-18 Port Terminal/Device/Console Servers - Express Replacement French

NSS-32 portEXPRESSREP Maintenance agreement | Perle

32-34 Port Terminal/Device/Console Servers - Express Replacement

NSS-32 PortXPRESSREPF Maintenance agreement | Perle

32-34 Port Terminal/Device/Console Servers - Express Replacement French

Hi!

¿Tienes una pregunta? ¡Chatea con un especialista en productos en vivo!

¿Tiene alguna pregunta?

Possiamo fornire ulteriori informazioni sui nostri prodotti oppure prepararti un preventivo


email-icon Envíe un correo electrónico
contactus-icon Envíe un correo electrónico callus-icon Llámenos
×

Envíe un correo electrónico
